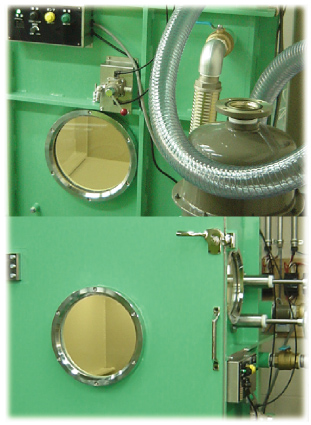

TVCiTakadamicro Vacum Chamber)

It is equipment for making a highly precise rubber type from silicone rubber based on a master model, pouring polyurethane resin and an epoxy resin into this under a vacuum, and making a duplicate article.

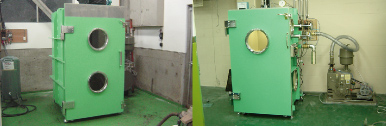

TVC-850

Outer size width 922x depth 982x height 1635mm.
The maximum height containing a tub up churning machine 2323mm.

Inner size width 760x depth 760x height 900mm

Vacuum pump 1600 L/min

VC-1800

Outer Size width 1062x depth 1282x height 1932mm
The maximum height containing a tub up churning machine 2620mm

Inner Size width 900x depth 1171x height 1700mm

Vacuum pump 3000 L/min

Common specifications

Resin churning Motor type (up churning machine)

Churning shuttlecock rise and fall Air type (up churning machine)

Pouring Manual type

Cup 500 cc / 1000 cc / 2000 cc attached with holder

Contacts Us

Vacuum notes type machine The feature of TVC (Takadamicro Vacuum Chamber)

- Since machine operation is easy, it can treat easily.
- From a large-sized cast to a precise one...

To the vacuum notes type equipment examination-direction

In accordance with hope, we manufacture the notes type machine in required size.
An inquiry is from here

TVC-850&TVC-1800

Vacuum notes type
About vacuum notes type technique

It is the method of making a highly precise rubber type from silicone rubber based on a master model, and pouring polyurethane resin and an epoxy resin into this under a vacuum, and making a duplicate article.

In order to develop a new product, examination of a function or a design is begun, and many trial productions and tests are required.
Vacuum notes type equipment is cheap and reproduces the trial product of a plastic quickly.

A silicone rubber type manufacture process

Master model
- Powder molding - paper molding
- ABS resin molding - light molding

1. To NC Large-sized machine master model. A gate is pasted up.
step1

2. It is mold so that master model may be surrounded.
step2

3. Agitate the main agents and hardening agent which were measured.
step3

4. Pour the rubber that be agitated and vacuumed into assembled mold.
step4

5. Carry out vacuum of mold of a rubber pouring agent.
step5

6. Carry out vacuum of the mold of rubber pouring agent.
A master is taken out from a rubber type.
step6

The manufacture process of vacuum molding

1. Vacuum of moisture or air out from Main Agents and Hardening Agent measured
step1

2. Combine and fix rubber type with mold
step2

3. Set vacuumed resin in the work room.
A vacuum state is checked, and it mixes and agitates.
step3

4. It is in Vacuum about Agitated Resin.
It pours into a rubber type.
step4

5. Open a rubber type and take out the product.
A gate part is finished and it is completion.
step5
